Timing

Timing - Front Covers
Range Rover Classic P38 94-98 GEMS 4.0L 4.6L Land Rover Disco 2 Timing Front Cover ERR6438 Kit

Timing front cover OEM:

Range Rover P38 94-98 GEMS 4.0L 4.6L

Land Rover Discovery 2 Classic

NOT BritPart

HE1310064 (ERR6438)

Kit includes gaskets, timing cover oil seal

£375.00 Incl. VAT @ 20%

Timing cover HE1310064 ERR6438.JPG
timing cover ERR6438.JPG
Range Rover Classic 1976 - 1994 New Timing Cover RTC5939 Kit (HRC1321)

Genuine Land Rover Timing cover plus uprated Oil Pump Gear Kit

Range Rover Classic

Kit includes:

Spare Oil seal

Oil pump gear kit (dependent upon availability)

HRC1321

£450.00 Incl. VAT @ 20%

High Vol  Pressure Oil Pump Kit AZ844.JP
Range Rover Classic 1976 - 1994 New Timi
Serpentine 1996 on Remanufactured Timing Cover Kit ERR6814 (HE1310074)

Remanufactured timing cover with integral pump

3.9L V8 serpentine engines

TVR Serpentine Engines 1996 onwards

Good used casting, fully dismantled, threads checked, oil pump rotors removed and inspected. Pressure relief assembly removed.
Cleaned in acid tank, grit blasted and re-assembled.
New Front oil seal fitted. Supplied with timing cover and water pump gaskets.



Timing cover HE1310074.jpg

£250.00 Incl. VAT @ 20%

SOLD OUT

Rover V8 Timing Cover Assembly Conversion - MGBV8, Rover SD1 Engines, Replacement 103005

Rover V8 Timing Cover Assembly Conversion - MGBV8, Rover SD1, Cobra Replicas Engines, Replacement.
Made for ATP Automotive Graywerks, USA (manufactured in Mexico).

Part number: 103005

Supplied with neoprene front oil seal and gaskets
A fuel pump blanking plate may be available.
Fitting:
The oil pump gear shaft (female slotted) as supplied, is to suit distributors equipped with a drive gear and not a drive gear and coupling as per the 1976-1992 approx engines. These use a tanged shaft end or male fitting.
If installing the cover on a later 1976> engine, the oil pump shaft can be utilized from your old gear shaft to suit the drive gear installed on your distributor.  A hydraulic press will be required to achieve this.
Will accept Standard, aftermarket Mallory, FAST or MSD Rover-type distributor and P6/SD1 type water pump assemblies.
Rover SD1, Rover P6, MGB V8 or or Range Rover Sump pans can also be fitted.
Some minor filing/fitting may be required to clear the front intake gasket holding plate due to casting variation between early 3.5L and later 3.9L engines. The timing marks on your existing crankshaft pulley will need to be re-marked.
Suitability.
Note: Suitable for use in e.g. Cobra Replicas, MGBV8 Conversions using P6, SD1 or Range/Land Rover Engines.
NOT suitable if your vehicle has PAS or A/C pumps or ancillaries.
Note: No longer automatically supplied with distributor end drive gear.

Paul Blackman 2019



Timing cover 103005 Graywerks.jpg

£250.00 Incl. VAT @ 20%

Timing Sets and Parts
Timing chain set Rover V8 Duplex - Cloyes Street True BY9-1132

Cloyes “Street True-Roller” Timing chain set BY9-1132
Features: Cast iron cam gear, Induction heat treated, billet steel crank
gear [3 keyways], for distributor fitted engines and 'long nose' camshaft

True-roller chain with .250” rollers.

Made in the USA.

cloyes Street True-Roller timing set.jpg
Cloyes Standard 3-piece timing set AZ770

Cloyes Standard 3-piece timing set AZ770

Application: for early engines with gear type oil pump in timing cover

Made in the USA.

Cloyes standard timing set.jpg
Timing chain standard ERC7929

Standard replacement timing chain ERR7929

Fits all Rover V8 engines: 3.5L - 4.6L

Made in the EU or UK (not Britpart)

After market

Product likely to be packaged differently from the box in the image

Chain ERC7929.JPG
Rover V8 standard timing sets

Set 1

Timing chain ERR7929 - Made in the EU - OEM

Crank chain wheel ERR2958 - Made in China

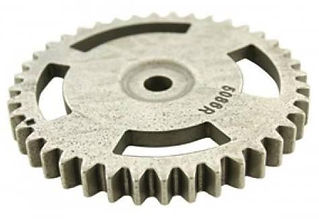

GEMS Timing sprocket ERR5086 - Budget - Made in China

Suits:

4.0L/4.6L Engines
1995 - 1998 Range Rover.

Chain kit ERR5086 GEMS.JPG

Set 2

Timing chain ERR7929 - Made in the EU - OEM

Crank chain wheel ERR2958 - Made in China

Motronic / Thor Timing sprocket ERR7375 4.0L - 4.6L - Budget - Made in China

Chain kit ERR7375 Motronic Thor Budget.JPG

Set 3

Timing chain ERR7929 - Made in the EU - OEM

Crank chain wheel ERR2958 - Made in China

Motronic / Thor Timing sprocket ERR7375 4.0L - 4.6L - Genuine Land Rover

Land Rover Discovery 2 4.0L
Range Rover 4.0L/4.6L 1998/9 - 2002

Chain kit ERR7375 Motronic Thor LR genuine_edited.jpg

Set 4

Timing chain ERR7929 - Made in the EU - OEM

Crank chain wheel ERR2958 - Made in China

Timing sprocket 610289 STD nylon teeth

Suits: 3.5L, 3.9L, 4.2L Made in the EU - OEM

Chain kit 610289.JPG
Kent Cams Timing Set Vernier Dual Roller Chain S29

Kent Cams Dual Roller Timing Set - Vernier S29

Steel double roll chain kit with adjustment that allows for more accurate camshaft timing to optimise performance. Not suitable for GEMS engines.

Suits:

Rover V8 3.5L, 3.9L, 4.0L, 4.6L, 5.0L and Kent Cams Camshafts:

H180, H200, 3.5L H214, H238, M256, HP1041-42 (Custom made camshaft)

Kent Cams timing.JPG
L/H & R/H rocker Arm Set - Alloy 602153G and 602154G

Light weight rocker arms equivalent to 602153G and 602154G

Set of 16

602154G Made in the EU

Not Britpart



Rocker arms alloy 602153G 602154G.JPG

£79.99.00 Incl. VAT @ 20%

L/H & R/H rocker Arm Set - Steel 602153G and 602154G

Robust steel rocker arms equivalent to 602153G and 602154G steel rocker arms

Set of 16

Not Britpart although BUDGET set made in China



Rock arms steel 602153G 602154G.JPG

£55.00 Incl. VAT @ 20%

Rocker shaft Original Spec for Rover V8 Engine 611659LG

Rocker shaft OEM specification

Pair of Rover V8 Rocker Shafts suitable for engines 1970 - 2002
Made in the UK
As an after market product, there is no orientation identifier mark.




£82.00 Incl. VAT @ 20%

Rocker posts  (billet mach 8) 603734

Alloy CNC Machined Rover V8 (all engines) billet rocker shafts
These shafts/posts are less prone to distortion compared to factory-made posts. Very competitively priced.

8 in a set




£86.35 Incl. VAT @ 20%

Rocker shaft outrigger supports

Alloy Outrigger Supports - high quality



Used to support rocker arm movement especially at a high r.p.m. and the rocker shaft as stresses are increased. The supports lessen the chance of the shaft fracturing and reduce arm deflection.
4 in a set

outrigger supports rocker shafts

£150.89 Incl. VAT @ 20%

Valve springs, single, standard 602142

Single valve springs

Made in the UK or EU

Sold as set of 16

Rocker Shaft Springs single.jpg

£18.73 Incl. VAT @ 20%

Set of 16

Valve springs, double DW550

Double valve springs

Heavy duty

Made in USA

These are suitable for most applications but not for over 6500 rpm. For Race springs please contact.

For fitting of inner springs - the valve guide boss may require machining in order to allow the inner spring to sit at the same level as the outer spring.

Heads will need maching to allow correct fitting.

Spring installed height is 1.54"
Pressure 75 Lbs @ 1.54"
Pressure @ 1.04" 200 lbs

Sold as set of 16

Rover V8 Double Valve Springs.jpg

£89.93 Incl. VAT @ 20%

Set of 16

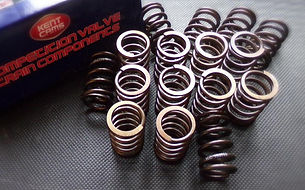

Valve springs, single one coil less

Up-rated by 15% over standard Rover Sd1 Valve Springs with one less coil for better valve guide to retainer clearance. Made from better quality col wire and heat treated.

For use with: Kent and similar High Performance Camshafts.
Eg, H180, 200, 214, 218
Crower 230, 232
RS Viper, Typhoon

These valve springs feature one less coil to help eliminate coil bind on performance camshafts. Coil binding or insufficient clearance will lead to de-lamination of the valve spring and a fractured spring.

Kent springs VS44.JPG

Please call or email for price and availability

Valve springs, single ERR4628

Standard valve springs ERR4628

OEM Made in the EU

Applications:
Rover SD1, Morgan + 8
TVR 350/390 Chim 400/Griff 400
Range Rover Classic 3.5L, 3.9L, 4.2L, Range Rover P38 4.0L & 4.6L
Discovery 1 3.5L, 3.9L, Discovery 2 4.0L

Set of 16

P38 RV8 Valve Springs 4.0 4.6 + other V8 engines.jpg

£48.52 incl. 20% VAT

Set of 16

Valve spring retainers / caps Comp Cams DW520

Comp cams valve spring retainers DW520

Heavy Duty Retainers for use with single or double valve springs.

For use with single or double springs.

Springs not included.

Comp Cams retainers.jpg

£98.64 incl. 20% VAT

Valve spring retainers / caps ERC573

Valve spring retainers or caps ERC573

Land Rover original part

Retainers for single spring installations.

Set of 16

valve spring retainers colletts ERC573.jpg

£88.86 incl. 20% VAT

Set of 16

Valve spring ERR4628 with retainer / cap ERC573 kit

Valve spring and retainer kit

Single valve springs ERR4628 OEM

Retainers/caps ERC573 (Land Rover original part)

Set of 16

ERR4628 and ETC4068.JPG

£127.38 incl. 20% VAT

Complete kit

Rocker Shaft Assembly Standard Genuine - Pair PBB1010

New Genuine Rocker Shaft Assembly complete with:

New Shafts, Rocker Arms, Rocker Pedestals, Springs, Thrust washers etc - fully assembled

Rockers have part number HRC 1010

HRC 1010 7.JPG
HRC 1010 4.JPG
HRC 1010 3.JPG
HRC 1010 6.JPG
Timing Marks / Indicators

500231-TM Pioneer Timing Mark

Made in the U.S.A.

Timing mark Pioneer 500231-TM.JPG

ATP-103014 Grayworks Ignition timing indicator

Made in the U.S.A.

Grayworks ATP-103014.jpg

£12.50 incl. VAT @ 20%

£10.00 incl. VAT @ 20%
